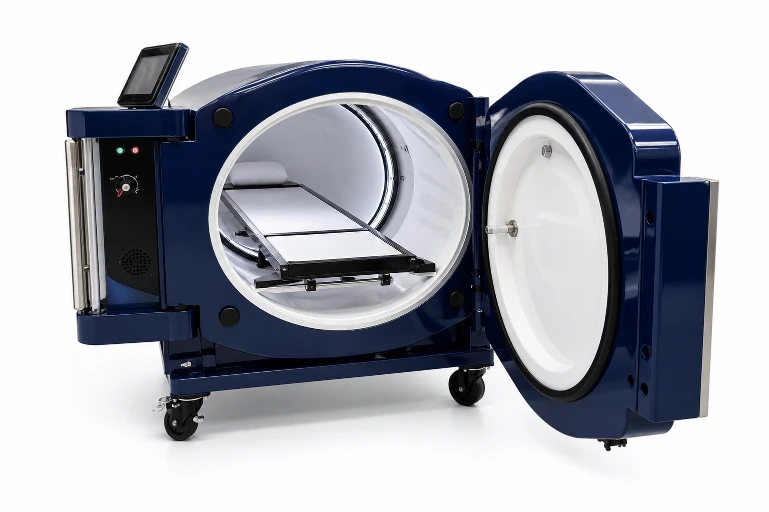

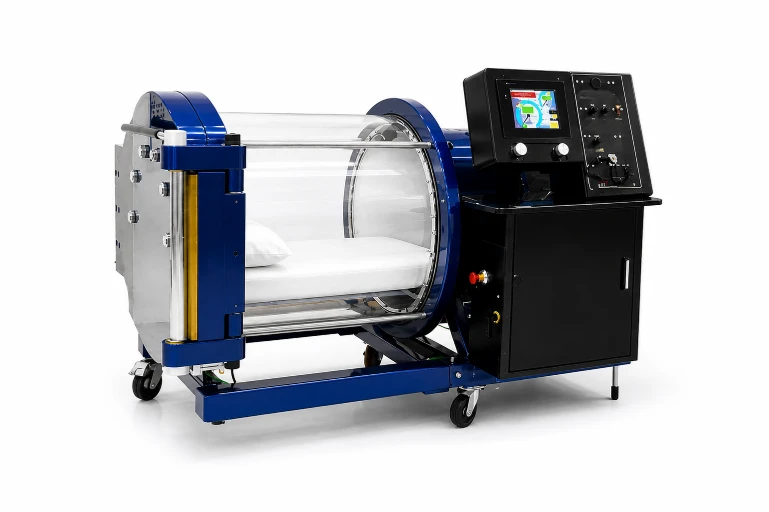

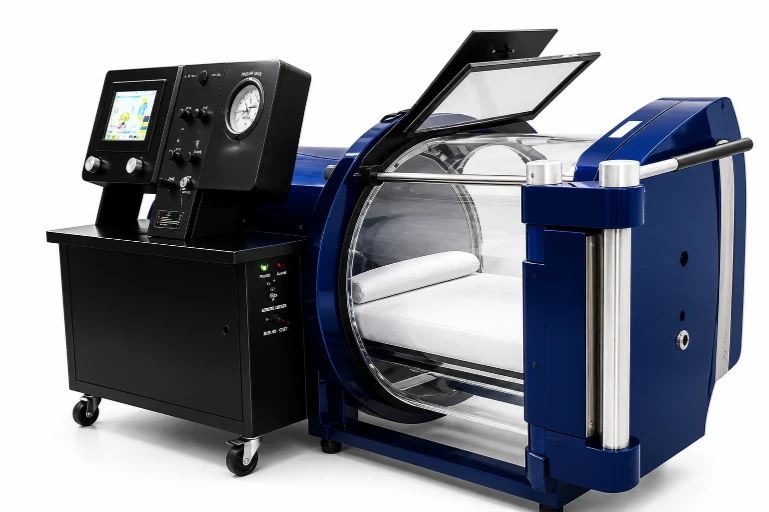

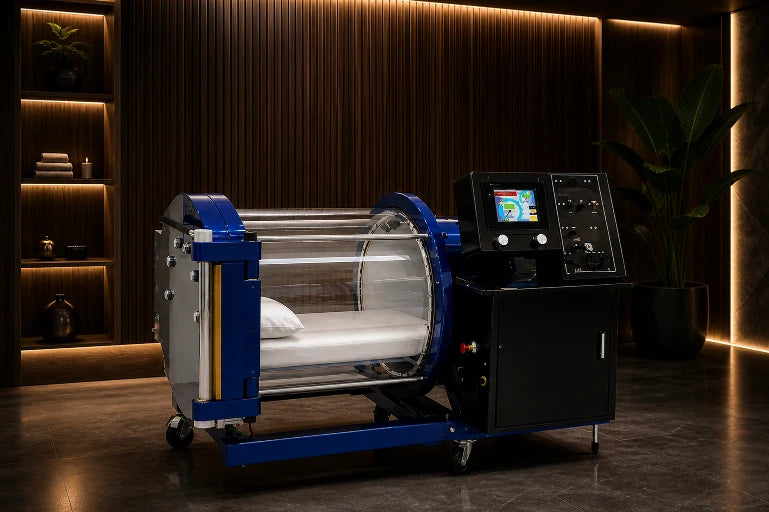

Vayu Solo

Variant: Solo

Configuration: Single patient, 32" inner diameter, 100% O₂ up to 3.0 ATA

Product Type: Monoplace Hyperbaric Oxygen Therapy Chamber

Model Number: 3200/32"

Inner Diameter: 32 inches

Maximum Working Pressure: Up to 3.0 ATA

Oxygen Delivery: 99.9% medical-grade oxygen

Oxygen Delivery Method: Whole-chamber oxygen pressurisation

Air-Break Ready: Yes

Compression / Decompression: PLC-controlled

Climate Control: Active temperature management

Door Type: Hinged hemispherical door with safety interlock

Viewport: Full-length acrylic viewport

Interior: Medical-grade fire-retardant interior

Lighting: Internal LED lighting

Operator Console: PLC system with optional touchscreen monitoring

Patient Capacity: 1 patient

Patient Position: Supine integrated stretcher

Reclining Option: Yes

Safety Lock: Yes

Privacy: Full single-occupancy privacy

Session Duration: 60–90 minutes

Daily Session Capacity: 4–6 sessions

Operating Life: 15–20 years

Treatment Room Size: 18 ft × 8 ft × 8 ft

Compressor Room: 8 ft × 8 ft minimum

Oxygen Supply: PSA generator or cylinder bank

Electrical: Three-phase power with isolation

Installation Type: Single-piece installation

Certifications: FDA 510(k), ASME-PVHO-1, ASME Section VIII Div 1, NFPA-99, CE MDD, ISO 13485:2016, ISO 9001:2015, UL Classified, MDSAP, CDSCO India

Warranty: 2 years

Service SLA: 48-hour support across India

AMC: INR-denominated

Manufacturing Location: Chennai, India
