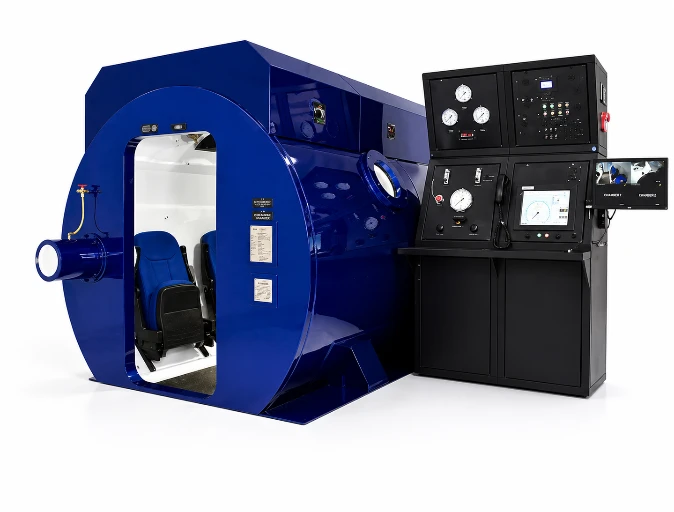

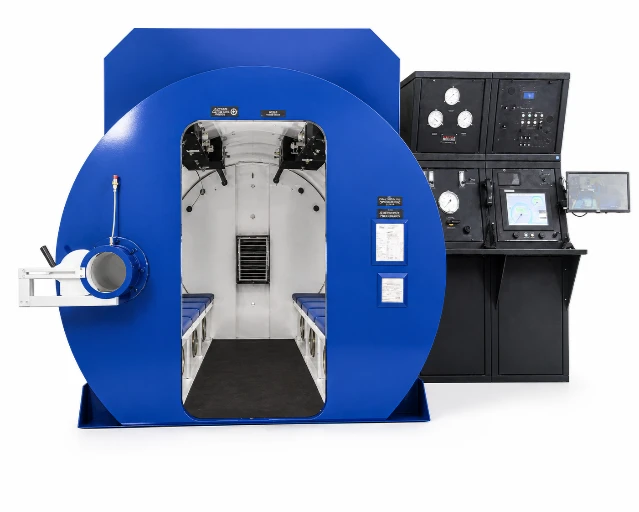

Product Type: Cylindrical Multiplace Hyperbaric Oxygen Therapy Chamber
Variant: Six Plus
Configuration: 6 Patients + 1 Attendant
Inner Diameter: 84 Inches
Chamber Type: Air-pressurised multiplace chamber with BIBS oxygen delivery
Patient Oxygen Delivery: Individually regulated BIBS hood or mask per patient
Oxygen Concentration: Up to 100% oxygen via BIBS
Parallel Protocol Support: Yes — independent BIBS regulation per seat
Compression System: PLC-controlled compression & decompression
Climate Control: Active internal temperature management
Door Type: Hinged door with safety interlock

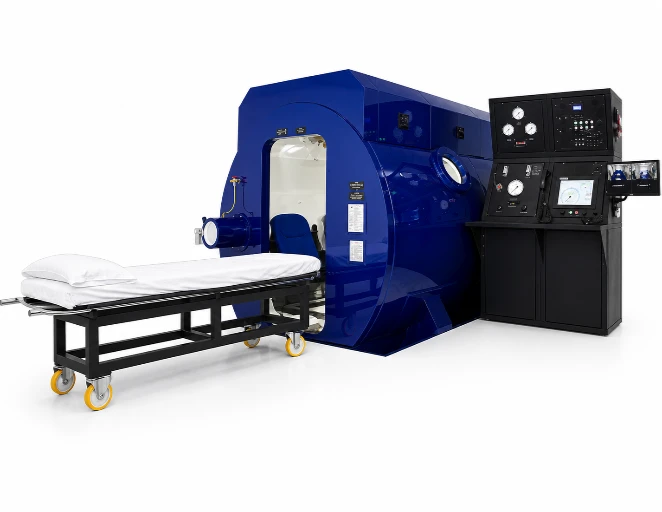

Stretcher Capability: Yes — supports acute-care and mobility-limited patients

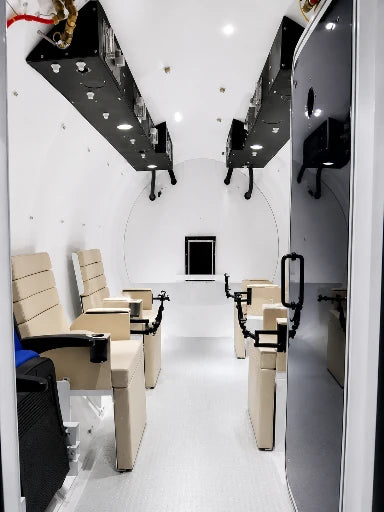

Patient Seating: Reclining clinical seats with BIBS interface
Interior Space: Enlarged 84" envelope for better comfort and attendant mobility
Lighting: Internal controllable LED lighting
Operator Console: PLC control console with optional touchscreen monitoring
Fire Safety: NFPA-99 compliant fire suppression system
Viewports: Multiple operator visibility viewports
Treatment Room Size: 19 ft × 15 ft × 8 ft minimum
Compressor Room Size: 10 ft × 7 ft minimum
Power Requirement: Three-phase electrical connection
Operating Life: 15–20 years
Daily Capacity: Up to 24 patient slots per day
Indicative Annual Revenue: Approx. ₹2.16 Crore
Warranty: 2 Years Standard
Service SLA: 48-hour support across India
Certifications: FDA 510(k), ASME-PVHO, CE, NFPA-99, ISO 13485
Manufacturing Location: Chennai, India
