Model: Vayu Edge — Modular Rectangular 6000
Configuration: 2 Patients + 1 Attendant

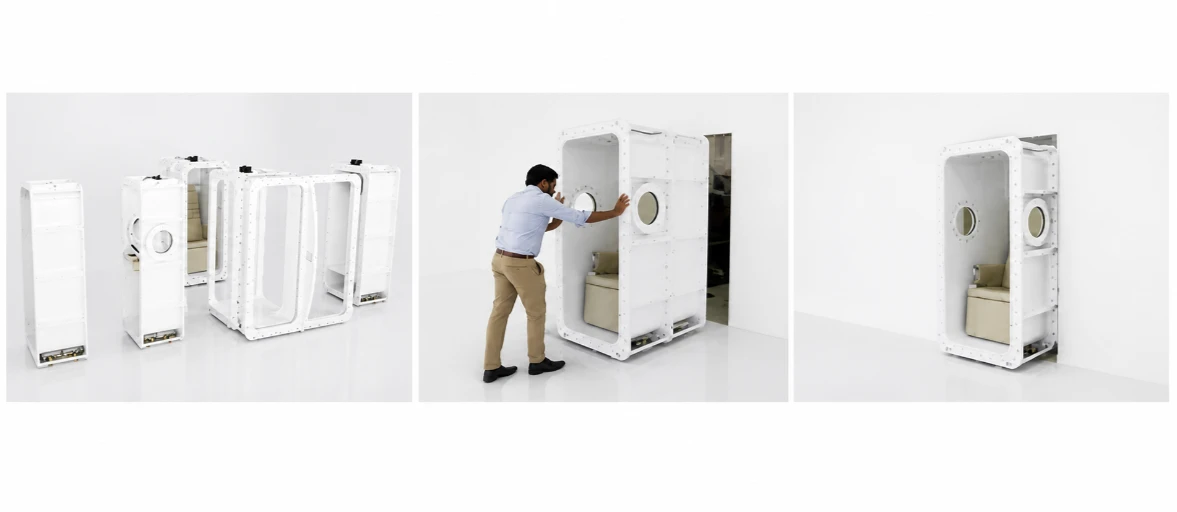

Door Access: Fits through standard 3-foot doorway
Expansion Capability: Expandable to 4+1 and 6+1 configurations
Oxygen Delivery: Up to 100% oxygen via BIBS hood or mask
Pressurisation Medium: Medical-grade compressed air
Control System: PLC-controlled compression & decompression
Door System: Sliding door with safety interlock
Seat Features: Individual climate, lighting & viewport per seat
Lighting: Individually dimmable fibre-optic LED
Climate Control: Personalised ECU per seat
Safety System: NFPA-99 compliant fire suppression system
Interior Material: Fire-retardant memory foam
Operator Console: Touchscreen-compatible monitoring console
Stretcher Support: Optional stretcher conversion
Treatment Room Size: 15.8 ft × 16.9 ft × 8 ft
Compressor Room Size: 8 ft × 8 ft minimum
Power Requirement: Three-phase electrical connection
Operating Life: 15–20 years
Warranty: 2 Years Standard
Service SLA: 48-hour support across India
Certifications: FDA, ASME-PVHO, CE, NFPA-99, ISO 13485
Manufacturing Location: Chennai, India
